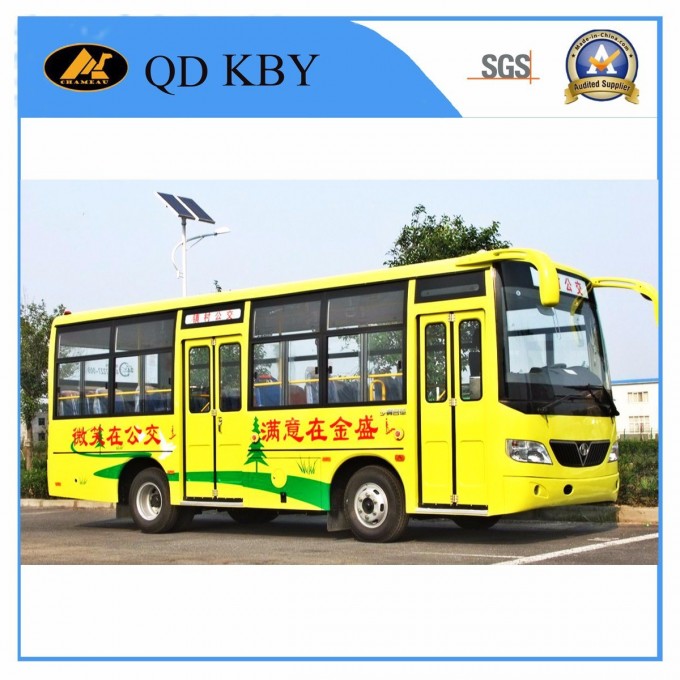

27-31seats 7meters Length Front Engine City Bus

()ITEM		SLG6700C3GF RHD/LHD
()DIMENSION	()LENGTH×()WIDTH×()HEIGHT(MM)	7000×2245×3000
	()Tread F (MM)	1830
	()Tread R (MM)	1600
	()WHEELbase (MM)	3308
()WEIGHT	()TOTAL MASS (KG)	6500
()PERFORMANCE	()MIN. VEHICLE TURNING CIRCLE (M)	11
	()MAX. SPEED (KM/H)	90
	(/)ANGLE (APP/DEP)	13/10
()Max SEATS CAPACITY		27-31 seats
()frameWORK		()STRAIGHT BEAM
()ENGINE	()MODEL	EURO2 YC4F115-20
	()TYPE	(4)4 CYLINDER IN-LINE
	()RATED-POWER (KW/R/MIN)	85KW
	()MAX. TORQUE (N.M)	300
	()EMISSION STANDARD	(II)EURO 2
	()FUEL TYPE	()DIESEL
()CLUTCH	()TYPE	()SINGLE PLATE DRY CLUCH
	()CLUTCH BOOST	WITH PUMP
()TRANSMISSION	()Gearbox	()5 SPEED- MANUAL
	()ConTROL SYSTEMS	FLEXIBLE SHAFT
()FRONT AXLE		2.7T
()REAR AXLE		4.5T
()BRAKING SYSTEM	()STEERING	()POWER STEERING
	()SERVICE BRAKE	()DUAL-CIRCUIT AIR BRAKING SYSTEM
	()PARKING BRAKE	Diaphragm spring brake
	()F/R BRAKING DIA.	Ф310
	()F/R BRAKING SHOE Width	120/150
()SUSPENSION STYLE		()MULTIPLE-LEAF SPRING
()TYRE		7.00-16
()OIL TANK CAPACITY		90L

Company Introduction

We are one ofthe major bus manufacturers in China which is certified by Chinese Ministry of Industry and Information Technology(MIIT).

Established in 1983, with 3 decades of development, it is now a powerful enterprise with 3,000 employees and 4 assembly factories. We are capable of producing 20,000 buses every year.

We produce different types of coaches, buses, city buses, cargo van, school buses and bus chassis. The products we export have gained the certification of CCC and ISO9001. We have customers from all over the world.

Adhere to the value of"CUSTOMERS BEING SUPREME, SERVICE BEING ENDLESS", we will spare no efforts to dedicate ourselves to meet the satisfaction and benefit of our customers. The best quality products and the strongest are always guaranteed to all of our clients and business partners.
