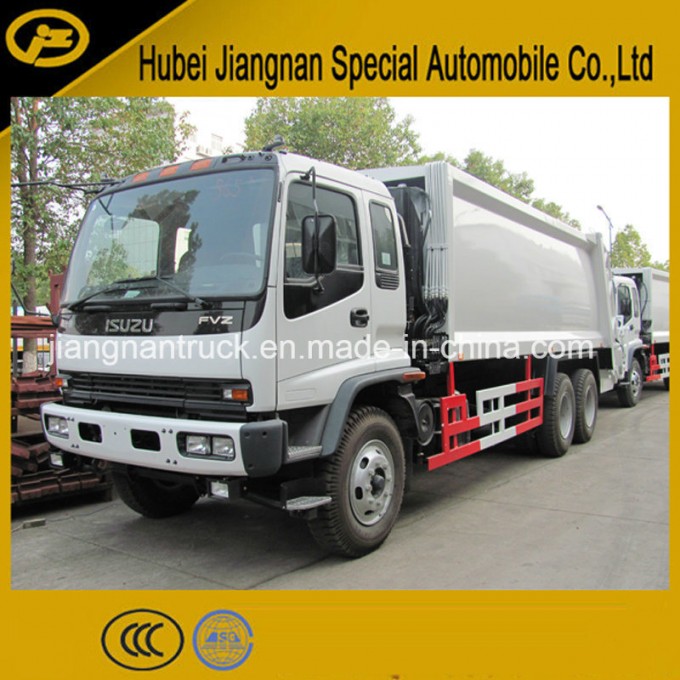

20 Cubic Meters Isuzu Garbage Compactor Trucks for Sale

General

Vehicle Brand

Jiangte

Chassis Brand

Isuzu

Overall Dimension

9365x2250x3650mm

GVW / Kerb Weight

25,000 kg /10,020 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Air conditioneris equipped

Engine

Fuel Type

Diesel

Engine Brand

ISUZU 6HK1-TCG40 Engine

Power

190 Ps (139 KW)

Displacement

5193cc

Emission Standard

Euro IV

Chassis

Drive Type

6X4, Left Hand Drive

Transmission

9 front and 1 reverse

Wheelbase/No. of axle

4500 +1350 mm / 3

Tyre Specification

11.00-20

Tyre Number

10 tyres and 1 spare tyre

Max Speed

90km/h

Paint

metallic paint

Superstructure and the main characteristic

Garbage box Capacity

20 cubic meters

Garbage box Material

Carbon Steel

1: Can choose 240L (single bin,double bins) or 360L, 660L, 1100L standard bin lifting and turnover mechanism, can also choose ground hopper and other kinds of loading mechanism.

2: With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.

3: With working device of emergency braking stop button.

4: Garbage body use frame design, elegant, strong structure, large effective capacity.

5: Equipped with special collection box, sewage directly into the sewage tank in the process of compssion, that is effectively pvent second pollution caused by sewage leaks.

6: Through hydraulic system design, the truck achieve the function of two-way garbage compssion, that is improve the compssibility ,make the compssion ratio up to 2.5:1, the garbage can reach more then 600~800kg/cbm after compssion.

7: All other standard accessories: Tool kit, English manual.
