Good Sales 12cbm Hook Lift Garbage Compactor Container Truck

Part I : Introduction of Factory :

good sales 12cbm hook lift compactor waste garbage truckFactory introduction:
1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturerin China.also we arefamous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such aswater truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more,our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
We have been in this field forover 10 years,we have more than 300 typesof special trucks, our workers are morethan 1000and factory is more than690,000m2.We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countriesmore than 4000 trucksevery year.

3.Quality control:our company truckpass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4.Design capacity :Our factory have 30 technician and designer.

5. Exhibition:our factory attend the Guangzhou Trade Fair each year.

6. Export market:Africa,Asia,South America,Pacific and so on

7.Our company cooperate with famous chasis manufacturers,such asDONGFENG,FAW,SHINOTRUK,IVECO,FOTON,SHACMAN,Yuejin , ISuzu China , Jac and all chassis supplier in China .



Part II :specification ofGood Sales 12cbm Hook Lift garbage Compactor container truck

Item		unit	parameter
Truck model			CLW5140ZKXT3
Chassis model			EQ5140KLJ
Overall dimensions		mm	7100*2470*2900
	Fact cubage	M3	10
	GVW	kg	Appro×114490
	Rated loading capacity		Appro×10000
	Curb weight		Appro×6595
	Body internal dimensions	mm	/
	Wheel base		4500
	F/R track base		1940/1860
	Approach/departure angle	°	25/6
Max speed		km/h	95
Engine		Engine model	B190-33
		Displacement/power	5900ML/140KW
		Manufacture	Dongfeng Cummins
		Max torque/speed	560N.m/1300RPM
Tire specification		10.00-20	transmission	6-speed with over drive
Traction system		4×2	Operation control system	Electrically hydraulic control
Body		Function	Make up by Hydraulic systemandoperating system. Lift cylinder oil system of domestic well-known manufacturers of hydraulic double-acting cylinder. Since hanging on the car may refuse to lay down, you can dump garbage on their own, up and down a working cycle time ≤50S. Pull arm garbage truck is the installation of trash in the truck chassis, based on the pull arm series, dump bodies and other special devices converted. The car features a vehicle can be equipped with a plurality of garbage Bin.

Specification of mobile compactor station:

Item	Parameter	Remark
Model	CL6612	Taiwan PLC control system, Poland hydraulic valve
Overall size(mm)	5100×2495×2550
capacity(m3)	12
Collector capacity(m3)	2.5
Garbage inlet nozzle height (mm)	1500
Floor beam width (mm)	1060
Guide wheel track width(mm)	2200
Central of lifting lug height(mm)	1570
Hydraulic system rated pssure(Mpa)	21	Italy pump
Max compact capacity(KN)	280	HUAYOU cylinder
compaction density(t/m3)	Max 0.8
running noisedB	≤65
Motor power(Kw)	5.5	Customized special motor
Power	380V.three-phase electric.15A,water-protection
Push plate cycle time(S)	≤42
Volume of single cycle compssion chamber(m3)	1.2

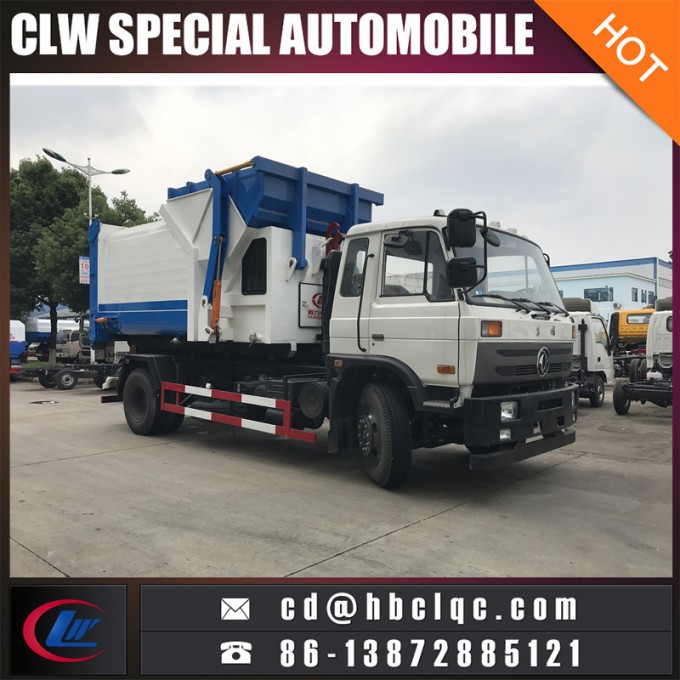

Photo of Good Sales 12cbm Hook Lift garbage Compactor container truck



Other garbage truck we made :


Part III:Shipment
By R-R ship or bulk ship , container,flat rack,




Part IV :FAQ

Q1. Quality control
A:We make quality control for each step while producing and before shipping.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.
LC terms is also can be accepted .

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .

Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time dependson the items and the quantity of your order.
For standard products, delivery time is as below:
Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)


Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. How to control truck quality?
A: we have Rich experienceworkers and engineer to control quality before and on production , we strictly followed STATE special truck technical specificationandsafety production specification .
We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q9. Did you sell truck to our country before?
A:Our main market is Africa, Asia, South America , Oceania,middle east , annual sales is around 5000units and keeping growing every year .
Q10,If you have no certificate for exporting trucks to our country , what should we do?
A:There are some regions and countries we can not export completed truck but we can make body according to your requirements and send to you , you install it on your own chassis and sell completed truck .this can help you to save cost and increase competitiveness
