Detailed Description
Electric vehicle product des
cription
1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery:Trojan
4. Stable quality, little noise, anti-fatigue and long durability
5. There is oil seal which can bear high temperature, therefore it can pvent the transaxle from oil leakage
Electric system | controller | 1205/400A |
| battery | Trojan battery 6V 12units |
| motor | 72V/6.3KW motor |
| charger | Computer Intelligent input 220V/110V ourput 72V 25A |
| Charging time | Less than 12 hours discharging rate 80% |
Body configuration | Glass | Sandwich glass | Sun Roof | Fiber glass |
| seat | leather | Floor | Autiskid rubber floor |
| Rear mirror | Handoperated, both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering |
| DC/Light/Signal | 72V/12V-400W Front light turning light fog light rear light horn Buzzer |
| Body | Fornt bady adopts PP alloy automobile special engineering material The driving baxadopts fiber glass material |
| Dash Board | Fiberglass dash board Voltage Indicator 48V Switch Head Lights Switch - Indicators Right/Left key switch Switch - Forward/Reverse |
| Braking system | Front disc and rear dram, four-wheel hydraulic brake+hand brake |
| Front axle and suspension | Independent suspension helical spring +cylinder hydraulic shock absorption |
| Rear axle and suspension | Integral type transaxle, gear ratio 12.49: 1, semi-independent transaxle, spring, cylinder hydraulic shock absorption |
| Tire diameter | 535mm |
Parameter
| Length*width*height | 4960*1480*1960mm |
| Loading passenger | 14 |
| Max speed km/h | 30km/h |
Mileage
/km | 80_ 100km flat road |
| Max climbing ability | 15% |
| Mini turning radiumm | 5.5m |
| Mini ground clearance | 180mm |
| Wheel base | Front 1180/back 1200mm |
| Braking distance | 3.5M |

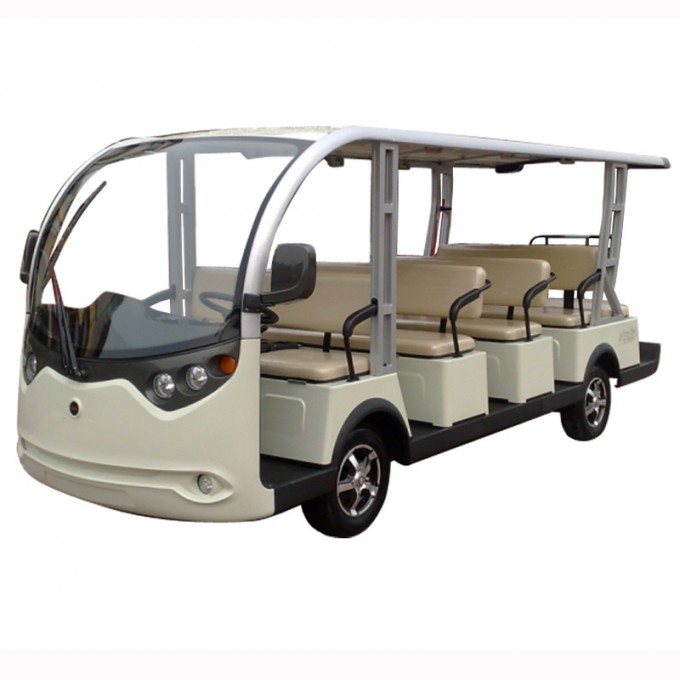

Product Image
