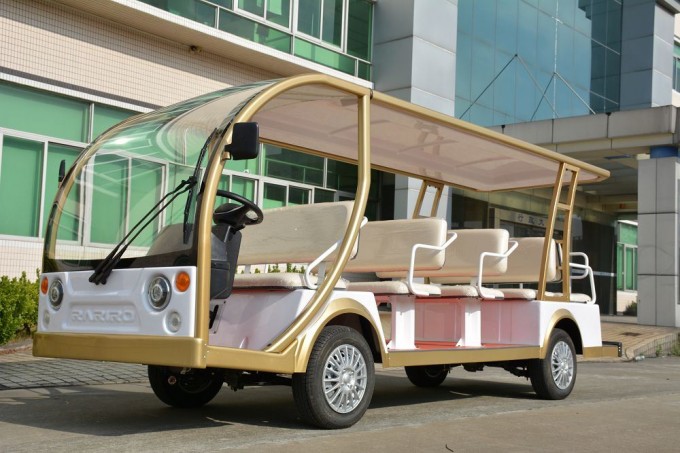

Passenger Resort Tourist Utility Battery Operated School Bus

Specification

Passengers		14
Min.Clearance		330 mm
Motor Type		Brush Less AC Motor (BLAC)
Rated Voltage		72V
Rated Power		5 KW
Battery		8V*9 pcs
Electric Control Unit (ECU)		1266
Steering Gear		Racl-and-pinion Steering-gear
Front / Rear Tread		1360mm
Overall Length		4830MM
Overall Width		1400MM
Overall Height		1935MM
Wheelbase		1500MM
Performance
Top speed		30 Km/h (limited by customerized)
Maximum Climbing Ability		30%
Braking Distance		<5M
Parking Slope		0.15
Minimum Turning Radius		5.7M
Braking System		Disc brake/Drum brake
Rear Brake		Hydraulic Drum
Item
Tires		165/70 R13
Charging Time		8~12 Hours
Limited Mileage		>100KM
Power Consumption(100KM)		10KWH
Weight
Net weight		750KG
Gross Weight		1220KG
Optional:
1. Curtain	200 USD
2. Protect guard	400 USD
3. power assisting steering 200 USD
