14 Seats Sightseeing Car City Tourist Bus

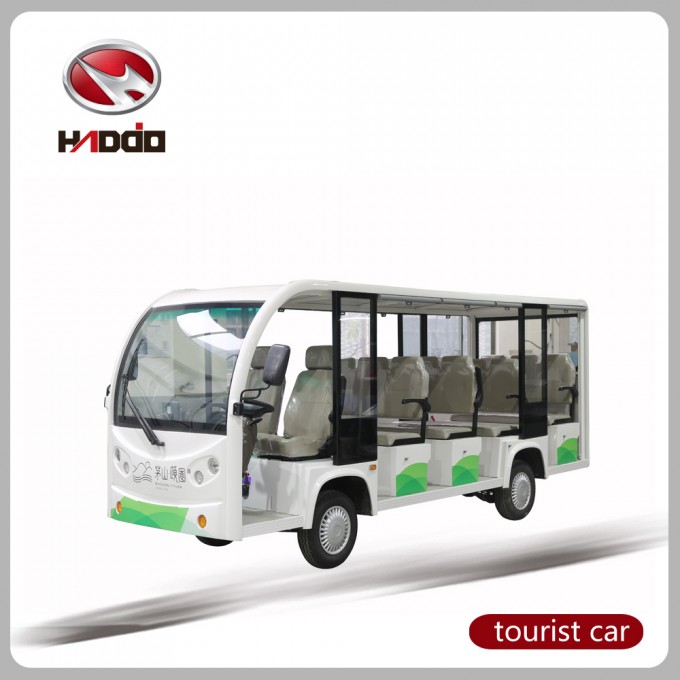

14 seats sightseeing bus
This 14 seats sightseeing bus is powered by car batterys and do not discharge harmful gas into the atmosphere.it needs only battery charging.this Electric vintage cars is build especially for tourist attractions,parks,giant entertainment venue,village,campus,garden hotel,holiday villages,Villa Districts,pedestrian mall,airpor,harbour,wharf and etc.this vehicle has excellent performance and new appearance design.It has been the most ideal in-door vehicle for it's exquisite trim and comfortable seat.
YMJ-6140 sightseeing bus configuration table

	Item	14 seats sightseeing bus	picture
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	5000×1540×1980
	Persons in cab (persons)	14
	Max. speed(km/h)	30
	Min. turning radius(m)	≤6.5
	Max. slope of climb(%)	20%
	Max. braking distance(m)	≤4
	Max Range(km)	80
	Min.ground clearance (mm)	≥150	Wheel base (mm)	2560
	Curb Weight (kg)	1200	Wheel track (front/rear) (mm)	1200
Electrical system	Battery	6V/group210AH,12group/ 72V
	Charger	72V/25A,Intelligent battery charger
	Controller	72V/450A Italian SME controller, electronic commutation
	Traction motor	72V7.5kw INVERTER DUTY AC MOTORS
	DC-DC	72V to 12V /30A
	LCD digital display instrument	YMJ 72V/(Current, voltage, speed and other signals)
Powertrain & Handling	Power transmission system	rear engine rear drive, Floated rearaxle 1.2m/ speedratio:12.49
	steering system	single-linkage gear rack type Steering wheel ,thefunctionofbrakeclearanceself-compensation
	The front axle and suspension	independent suspension,McPherson suspension(Φ12helical spring+Hydraulic damping)
	The rear axle and suspension	non-independentsuspended,leaf spring
	braking system	Front disc and drum brakes, double loop hydraulic control, parking brake device
	tyre	Iron rim vacuum tire rims, 155R12C
appearance	paint	Whole vehicle uses the car paint computer paint,professional spraying equipment
	frame	Aluminum alloy profiles
	frame + body	High quality carbon tube welding antirust frame+glassfiberreinforcedplastics
	Lighting and signal	comination headlamp, turn light, LED tail lamp, electric horn and reversing buzzer
	Front and rear windshield	safetyglass
interior	Chair	emulational leather+PU
	Adjustable steering wheel	Steering wheel angle
	switch	Start switch, lighting and wiper switch,Electronic gear lever
	MP3	US19 MP3
optional	storm curtain	Suitable for rainy days and winter
	batterypack	Easy to change stack structure
Note: 1. The vehicle distribution charger and a set of tools 2.Vehicle configuration, color can be customized according to customer requirements
