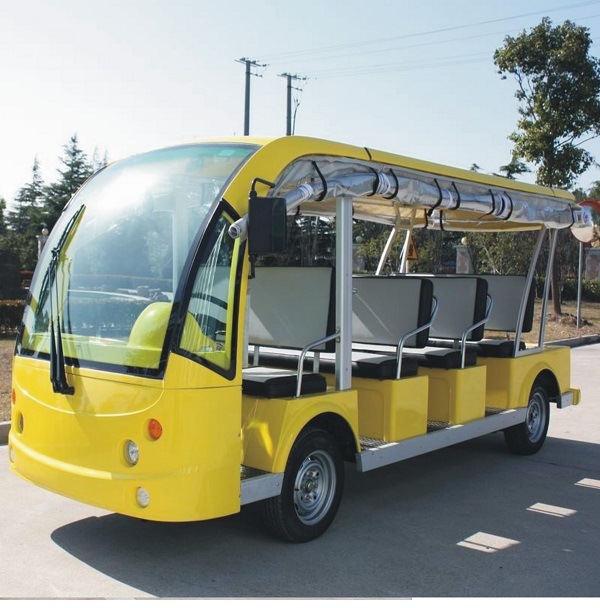

China Manufacture 11 Seats Electric Sightseeing Bus for Square (DN-11)

China manufacture 11 Seats Electric Sightseeing Bus for square (Dn-11)

electric sightseeing bus features:

1. Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise.

2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure

3. Small turning radius; and smart steering system ;Whole style steel rear axle;

4. Can be easy modified to transportation vechicles;

5. CE certificate for whole carts;

6. import main parts:US batteries( From USA) and Curtis controller(From USA).Delta-Q chargers(From Canada);

7. Four wheels hydraulic braking system and independent parking brake

electric sightseeing bus specifications:

Model	DN-11
Passenger Capacity	11
Power supply
Battery	6V216AH*12
Motor	DC72V/5kw,DC
Controller	72V400A(curtis 1205)
Charger	48V25A full automatic high frequency charger
Performance
Max. Speed	28km/h
Max.travelling range	60-80km
Climbing capactity	25%
Brake Range	6.5m
Minmum turning radius	6.5m
Gross Weight	1250kg
Carrying capacity	1000kg
Chassis
Steering	"Rack&Pinion"Steering
brakes	Four wheels hydraulic braking system and independent parking brake
tire	165/70R13
Ground clearance	130mm
Overall dimension(L*w*h)	4650*1520*2700mm
Qty per container	2pcs/20FT 4pcs/40FT 4pcs/40HQ
Standard parts	Front and rear lights, Rear view mirrors, Speed meter, Wiper, DC system
Optional parts	AC system, Loud speaker, CD player, Weather enclosure, Side sunshade curtain, 3 points seat belt for driver, Alloy wheels, Front disc brake, Power assisted steering system, Trojan Battery
