Rear Loader ISUZU Mini 4.5m3 Compssed Garbage Trucks 5m3 price
cabin | Driving type 4x2 | ||
Standard cab, with threeseats,with A/C. Left Hand Driven.70°hydraulically tillable to the front as attached photo for ref. | |||
Vehicle Main Dimensions | Overall dimensions (L xW xH)mm | 8000x2450x3100 | |
Wheel base(mm) | 4500 | ||
Wheel track(front/rear) (mm) | 1798/1764 | ||
Approach/Departure angle(°) | 27/20 | ||
Weight in KGS | Tare Weight | 6400 | |
Loading Capacity | 5000 | ||
Front axles loading capacity | 1x3200 | ||
Rear axles loading capacity | 1x8200 | ||
Max. driving speed(km/h) | 90 | ||
Engine | Brand | ISUZU | |
Model | 4HK1-TCG40 | ||
Type | 4-stroke direct injection ,4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 190 HP | ||
Emission standard | Euro 4 | ||
Gearbox | WLY6T51 ,6 forwards &1 reverse | ||
Clutch | Diaphragm spring clutch | ||
Steering Gear | Power steering | ||
Fuel tank (L) | 230 L | ||
Tire | 8.25R20 All radial tires with one spare, 7pieces | ||
Compssion garbage box body system | |||
BodyVolume | 4.5 CBM | ||
Cycle Time of Filling(S) | ≤40 | ||
Lifting Time of Filler(S) | 8-10 | ||
Time of Discharging | ≤60 | ||
Working Pressure(MPA) | 16 | ||
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compss and dump the garbage .and the sewage generated in the process of the compssion all go into the sewage tank. | |||
Detailed pics from different angle

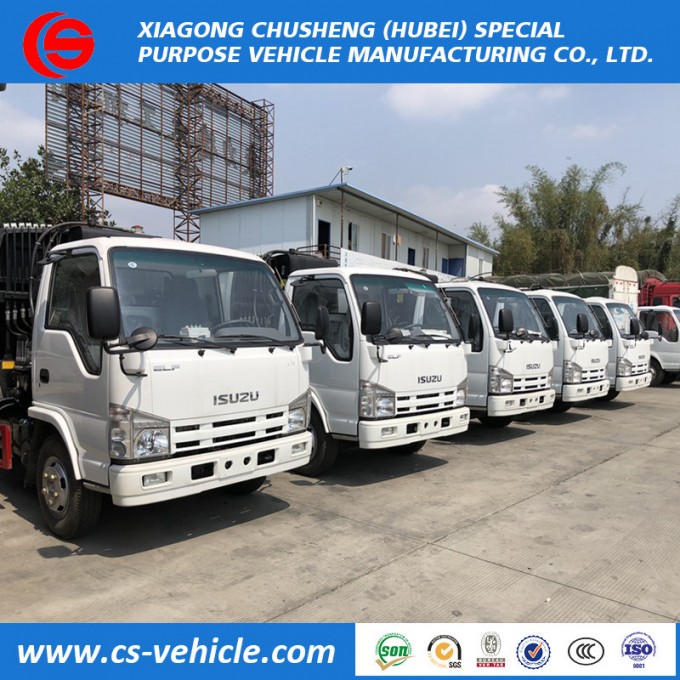

Factory view for compssed garbage truck
Key parts on compssed garbage truck
