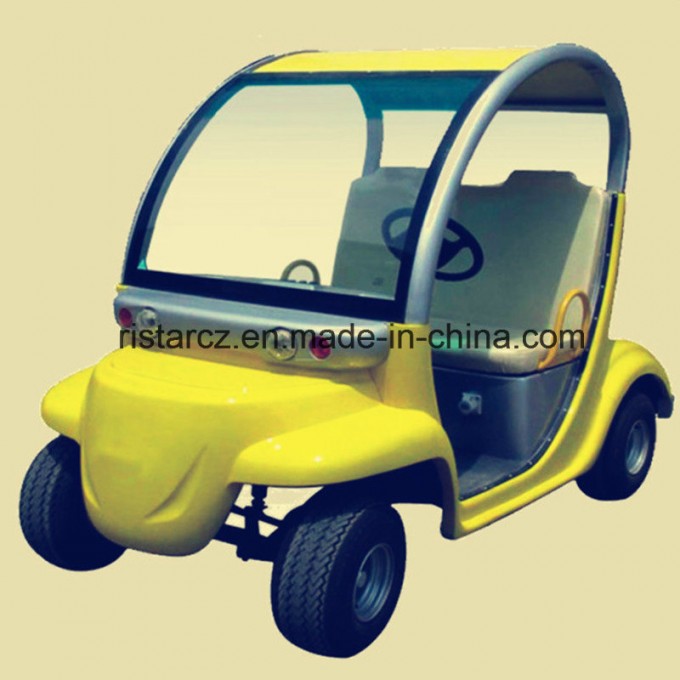

2 Seat Mini Electric Sightseeing Car Rsg-102e

2 Seat Mini electric Sightseeing Ca RSG-102E

ResortCars or Sightseeing Cars, are used primarily to optimize travel in locations such as airports, train stations, hotels, schools, and scenic spots. These models are especially useful for providing comfortable and easy transportation for multiple passengers.
Ristar'resortcarswith: 2 seats, 4 seats, 6 seats, 8 seats etc. Various colors for your choices, high climbing abilities etc. Fresh shapes and featured logos. Our more than 10 technicians help you to OEM your cars. Also we have car's video for your reference if you need.
Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated 3KW-4KW (4.08HP-5.4HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T875, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 75
Max.speed (km/h)	up to 40
Min.turning radius (m)	3.6
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	270
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item	Description
Overall dimensions (mm)	2680x1290x1900 (LxWxH)
Min.ground clearance (mm)	95
Wheelbase (mm)	N/A
Front wheel tread (mm)	N/A
Rear wheel tread (mm)	N/A

Body and frame

Item	Description
frame & Chassis	Welded steel framework with sand blasting and painting
Body	FRP
Roof	FRP
Windshield	Laminated glass
Cushion	Reborn sponge with artificial leather
Backrest	Reborn sponge with artificial leather
Armrest	Steel pipe
Floor mat	Skidproof rubber
Rear storage box	Fibreglass,with lock, large volume
Dashboard	FRP, with F/R switch, battery power indicator, ignition key on it
Beverage holders	2 cups holders
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Police light system	with siren and mircophone
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	48V/12V

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake with foot park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Cylinder hydraulic shock absorber and leaf spring
Rear suspension	Cylinder hydraulic shock absorber and leaf spring
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Aluminum differential cage, integrated, 12.76:1 gear ratio
Wheel & Tyre	8*7 steel rim with wheel cap, 18*8.5-8 4PR tyre

Option Accessories
To increase the sales value of our electric cruise car, we also provide many optional accessories.

Item	Option description	Item	Option description
1	2-point seatbelt	6	Water pump (handle)
2	Golf bag kit	7	Enclosure (Rain Cover)
3	Steering wheel in wood finish	8	Cooler box
4	Inner rear view mirror	9	4-wheel hydraulic drum brake + hand park brake
5	Battery watering pipe	10	4-wheel hydraulic front disc rear drum barke + hand park brake

Color Options

Item	Pure white	Pure black	Pearl Red
Body (includingroof)
	Lake green	Greece yellow	Pearl White

Packing & Shipping
Electric cruise carwill be packed in steel crate

Container loading qty	Semi-knock-down
20'ft GP	/
40'ft GP	/
40'HQ	8

Warranty
All electric cruise carsold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
This car can be used as police patroling car, see pics below:



Loading and Packing:

Nude packing, four wheels fixed.
Assembled: 2 units for 20' container, 4 units 40' container,8 units 40HQ
