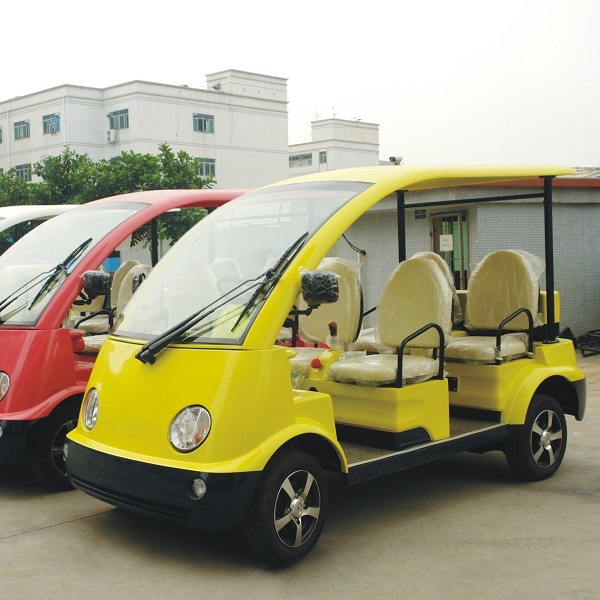

Approved 4/5 Passengers Electric Sightseeing Mini Bus (DN-4/5)

Approved 4/5 passengers electric sightseeing mini bus (DN-4/5)

electric sightseeing mini busfeatures:

1. Good aftersale-service, as most parts are manufactured by ourselves;

2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;

3. import main parts: US battery (From USA) and Delta-Q chargers(From Canada),Curtis Controller(From USA);

4. Brake system: Rear wheel Mechanical Drum Brake

5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;

6. Good hill climbing ability, the system allows you to customize the car to fit your course;

7. Smart steering system, easy to make forward and backward;

8. Good climbing ablity and can park easily on Hills;

9. Can be easily to be modified to Utility carts.

electric sightseeing mini busspecifications:

Model	DN-4
Passenger Capacity	4/5passengers
Power supply
Battery	6V battery*8 pcs
Motor	48V3KW DC
Controller	48V350A DC Series excitation motor speed controller
Charger	48V250A full automatic high frequency charger
Performance
Max. Speed	25km/h
Max.travelling range	60km
Climbing capactity	15%
Brake Range	<=5.5
Minmum turning radius	5.0m
Gross Weight	800kg
Carrying capacity	320kg
Chassis
Steering	recirculating-ball steering
brakes	Four wheels hydraulic braking system and independent parking brake
tire	145/70R12 69S
Ground clearance	120mm(full load)
Overall dimension(L*w*h)	3300*1410*1900mm
Qty per container	2pcs/20FT 5pcs/40FT 5pcs/40HQ
Standard parts	Front and rear lights, Rear view mirrors Speedometer,Wiper
Optional parts	Alarm lights, Loud speaker, CD player, Weather enclosure, Side sunshade curtain, 3 points seat belt for drive, Trojan Battery
