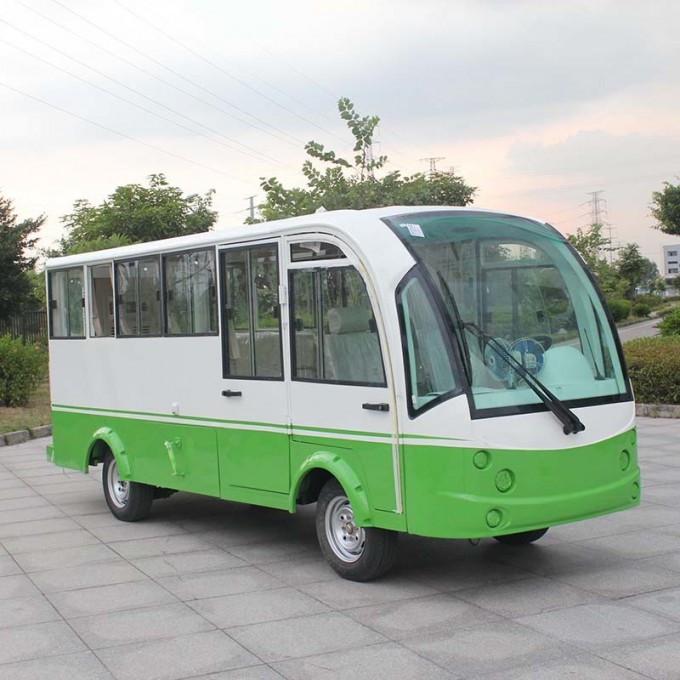

Ce Certificate 14 Seats Electric Mini Bus with Closed Hard Door (DN-14F)

CE Certificate 14 Seats Electric Mini Bus with Closed Hard Door (DN-14F)



CE Certificate 14 Seats Electric Mini Bus with Closed Hard Door (DN-14F) features:
1. Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure
3. Small turning radius; and smart steering system ;Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. import main parts:US batteries( From USA) and Curtis controller(From USA).Delta-Q chargers(From Canada);
7. Four wheels hydraulic braking system and independent parking brake.

CE Certificate 14 Seats Electric Mini Bus with Closed Hard Door (DN-14F)specifications:

Model	DN-14
Passenger Capacity	14
Power supply
Battery	6V*12
Motor	72V5KW/DC or 51V7.5KW/AC
Controller	72V400A or 72V550A
Charger	48V25A full automatic high frequency charger
Performance
Max. Speed	28km/h
Max.travelling range	60-80km
Climbing capactity	20%
Brake Range	6.5m
Minmum turning radius	6.5m
Gross Weight	1300kg
Carrying capacity	1120kg
Chassis
Steering	"Rack&Pinion"Steering
brakes	Four wheels hydraulic braking system and independent parking brake
tire	165/70R13
Ground clearance	130mm
Overall dimension(L*w*h)	4800*1520*2025mm
Qty per container	2pcs/20FT 4pcs/40FT 4pcs/40HQ
Standard parts	Front and rear lights, Rear view mirrors, Speed meter, Wiper, DC system
Optional parts	AC system, Loud speaker, CD player, Weather enclosure, Side sunshade curtain, 3 points seat belt for driver, Alloy wheels, Front disc brake, Power assisted steering system, Trojan Battery

Marshell14 Seats Electric Mini Bus with Closed Hard Doorcompany profiles:
Marshell was founded in 2002, it is a world-class electric vehicle designer and manufacturer in China. Our main products are golf car, golf trolley, sightseeing car, e-scooter, utility vehicles and so on. All items are CE certified.

We have three facilities in Guangdong and Shanghai, with 210000 square meters workshops and 800 workers. Our daily production capacity is 100 units of big vehicles and 500 units of scooters.

Marshell has been recognized by ISO9001/ISO14001, all items are CE certified. Marshell is also the first one who got European EEC certificate in China. Moreover, every vehicle is marked with World Manufacturer Identifier (WMI) and VIN.

Please inquiry me for more details.
