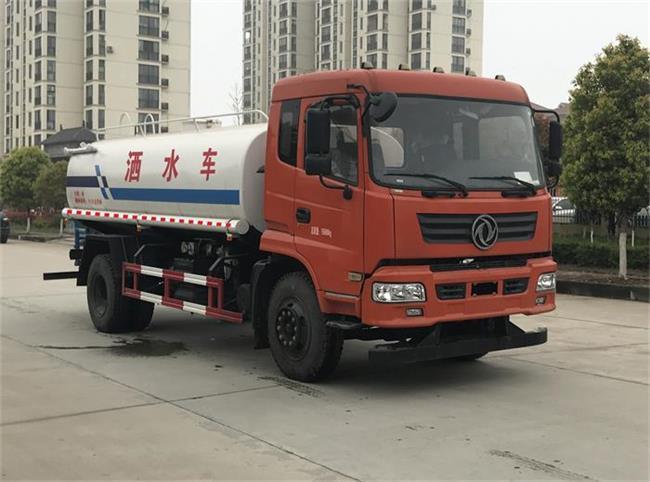

Dongfeng Water Tanker Truck with 10 Cbm Capacity

Dongfeng water tanker truck with 10 CBM capacity
Complete vehicle technical parameters
Product Brand :Dongfeng Brand
Product Name: Sprinkler Model: EQ5168GSSLV4
Total mass (Kg): 15800 Tank volume (m3): 10.25
Rated load capacity (Kg) : 10005,10070,9805,9870
Overall dimensions (mm) :7500,8050×2480×3250
Service Quality (Kg) : 5600,5800
Rated passenger (person) quasi trailers total weight (Kg)
Number of the cab (person) 3
Approach angle/departure angle (°) : 26/20
Front/rear suspension (mm) : 1450/2100
Axial load (Kg) : 5800/10000 Maximum speed (Km/h): 90
Remarks 1. The effective volume of the tank is 10.25 cubic meters, the transport medium: water, medium density: 1000kg/cubic meter, with the rear platform when tank body dimensions (tank length × long axis × short axis) is 4300 × 2240 × × 1500 (mm), 4600 × 2200 × 1400 (mm); tank body dimensions (tank length × long axis × short axis) without rear platform is 4700 × 2100 × 1400 (mm), 5000 × 2100 × 1360 (mm); The color and pattern of the tank can be changed.

Protection material Material: Q235-A; Connection: linked with the frame bolt; the cross-sectional dimension of the rear protection device is 50×120mm, and the height from the ground is 450mm.3. With chassis optional lighting, bumper and other new styles, optional cans, rear platform for optional parts, only use the chassis 3950mm, 4500mm wheelbase.
4. Install a satellite recorder with a satellite positioning function. 5. ABS production Manufacturer: East Corkner Commercial Vehicle Brake System (Shiyan) Co., Ltd.; Model: 3631010-C2000.
[chassis technical parameters]
Chassis Model EQ1168GLVJ3 Chassis Name : Truck Chassis
Trade name : Dongfeng Brand
Production Company : Dongfeng Motor Group Co., Ltd.
Number of axles : 2 Number of tires: 6
Wheelbase (mm) : 3950,4200,4500,4700
Tire specifications 10.00-20 , 10R22.5 16PR, 275/80R22.5 16PR
Number of leaf springs 9/11+8,8/10+8,8/11+8
Front track (mm) 1810,1910,1940
Fuel Type : Diesel Rear Track (mm) : 1800,1860
Emissions standards : Euro V
Engine Type Engine Manufacturer Displacement (ml) Power (Kw)
ISD180 50 Dongfeng Cummins Engine Co., Ltd. 4500 132
ISB170 50 Dongfeng Cummins Engine Co., Ltd. 5900 125
