Detailed Description
Electric vehicle product des
cription
1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can pvent the transaxle from oil leakage.
| Electric system | controller | 1236 |
| battery | Trojan,Maintenance Free battery 6V,12units |
| motor | 72V.7.5kw motor |
| charger | Computer Intelligent,input 220V/110V,ourput 48V,20A |
| Charging time | Less than 12 hours(discharging rate 80%) |
Body configuration | Glass | Sandwich glass | Sun Roof | ABS Vacuum forming
|
| seat | leather | Floor | Autiskid rubber floor |
| Rear mirror | Handoperated,both side | Steering | Dual automotive-style strut and self-adjust rack-and pinion steering |
| Light/Signal | Front light,turning light,fog light, rear light,horn,Buzzer |
| Body | Fornt bady adopts"PP"alloy automobile special engineering material The driving baxadopts fiber glass material |
| Dash Board | Fiberglass dash board ,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left,key switch,Switch - Forward/Reverse. |
| Braking system | Front disc and rear dram,four-wheel hydraulic brake+hand brake |
| Front axle and suspension | Independent suspension , helical spring +cylinder hydraulic shock absorption |
| Rear axle and suspension | Integral type transaxle,gear ratio 12.31:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption |
| Tire diameter | 535mm |

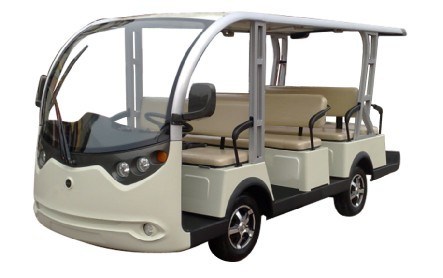

Product Image
