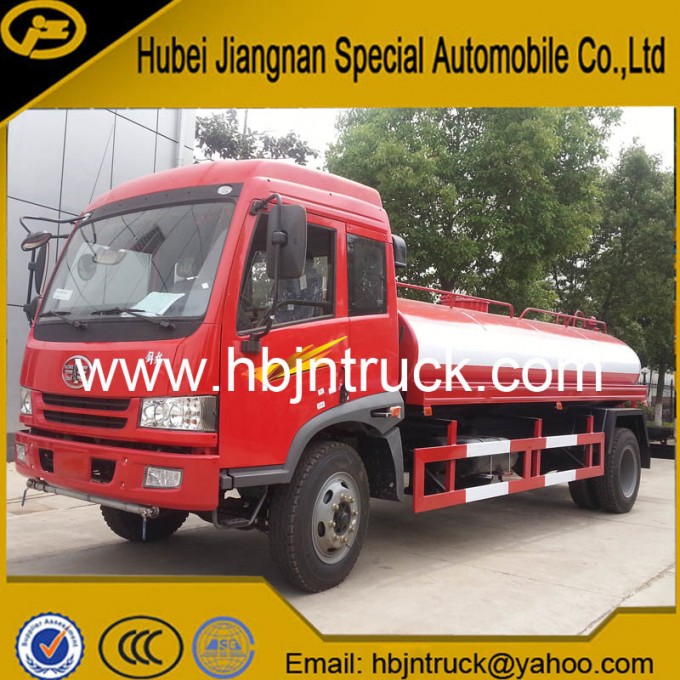

Vehicle name | FAW water tanker truck | |
Chassis model | CA1167PK2BE4A8 | |
Chassis make | FAW | |
Drive type | 4x2, Left hand drive | |
Wheelbase (mm) | 5000 | |
| Cab | J5K half standard roof, sunroof, has sleeper bed, 3 seats | |
| Vehicle dimension (L*W*H)(mm) | 8500×2340×2730 | |
| Weight parameter | Total mass (kg) | 15800 |
| Curb weight (kg) | 6705 | |
| Rated payload (kg) | 8900 | |
| Engine | Engine model | BF4M2012-14E4 |
| Engine make | Faw | |
| Rated power | 103kw (140hp) | |
| Displacement (ml) | 4040 | |
| Emission standard | Euro 4 | |
| Type | Diesel engine, 4-cylinders in line, supercharged with intercooler | |
| Gear box | CA6TBX075M, manual, 6 speed forward, 1 speed reverse | |
| frame | 237*75*7(mm) | |
| Rear axle | 7ton | |
| Brake | Air brake | |
| Tire type | 8.25-16, Total 6 pieces +1 pc spare tire | |
| Water tanker | Tank volume (L) | 8000 Liters |
| Tank material | Carbon steel tank | |
| Thickness | 5mm | |
| Water pump | Pump model | 65QZ-40/45 |
| Pump specification | Flow rate:40m³/min(660L/min), Delivery lift height:45m, Input shaft rotational speed:1000r/min, Shaft power:9.25kw, self-priming height:6.5, self-priming time:1.5min/4m, pump diameter:65mm, vertical suction height>7, spraying width >14m, spraying range>28m | |
| Suction hose | 4m length | |
| Emergency light | Red-blue at the top of cabin, rear tank 2 circle light | |
| PTO | Special PTO for water tanker truck | |
| Paint | High quality paint, color as customer request | |
