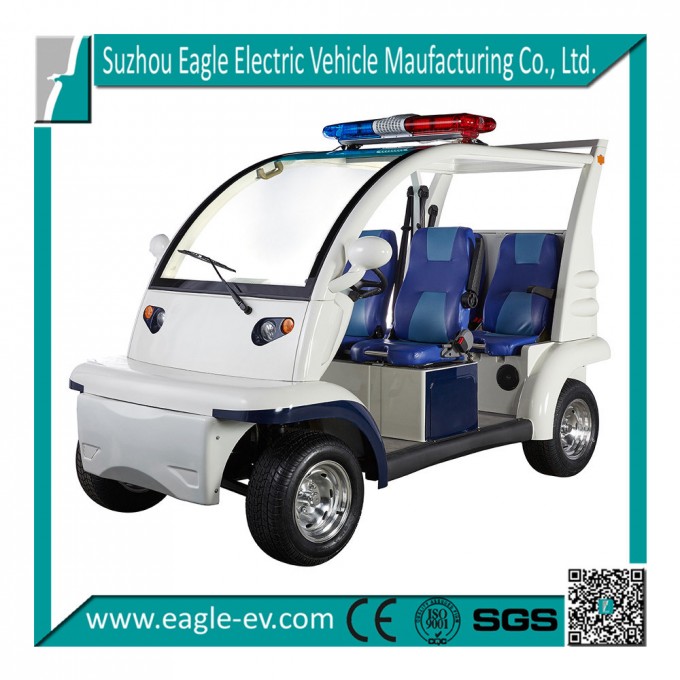

| Specifications | Model | EG6043KElectric People Mover |
| Key Components | Power Source | Pure Electric |
| Electric System | 48V system(DC Series& Sepex& AC Sepex) |
| Battery | Trojan battery |
| Motor | Chinese Motor |
| Controller | Curtis controller |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A |
| Performance | Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km) * | Up to 100 |
| Max. speed | Up to 40 |
| Minimum turning radius (m) | 4 |
| Max. climbing ability (loaded) | Up to 25% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max. loading weight | 320kgs |
| Dimensions | Overall dimensions (mm) | 3060x1400x1900 |
| Min. ground clearance (mm) | 140 |
| Wheelbase (mm) | 2080 |
| Front wheel tread (mm) | 1210 |
| Rear wheel tread (mm) | 1160 |
| Body and frame | frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass |
| Roof | Fibreglass+steel frame |
| Electric system | Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Four wheel hydraulic drum brake+foot parking brake |
| Suspension system | Independent suspension, helix spring + shock absorber(FW) & rear plate spring + shock absorber(RW) |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Gear ratio12.49:1 |
| Wheel & Tyre | 225/55b12 6PR tire, 12X7 aluminum wheel |
| Inner rear view mirror |
|
| Rain cover |
|
| CD player |
|
| Solar panel |
|
| Integrated, Gear ratio10.25:1 |
|
| Body Color | Up to 6 kinds of standard color for option |
| Loading | Both Assembly and Disassembly are available |
