Detailed Description
EG6158KF is built ba
sed on EG6158K by adding closed hard door.It's suitable for using in all weather, especially in windy day, rainy day, snowy day and other bad weather day.
Because of its feature of no pollution and low noise, this kind of electric shuttle bus is aperfect transporting vehicle in closed area such as park, resort, garden, museum, village, hotel, airport, community, big factory, pedestrian street, etc...With ten years' experience accumulation, Eagle is providing you the most suitable, reliable, comfortable electric shuttle bus.Choose Eagle's electric vehicle is your best choice!!
| Battery | Deep cycle, lead acid battery, Trojan brand, imported |
| Motor Power | 5KW DC, 7KW AC, 7.5KW AC |
| Controller | Curtis brand, Separated/Series excited, imported |
| Passenger capacity | 14 |
| Range (loaded) based on flat road at aspeed of 20km/h (km) | >50, 65, 75 depending on different configuration |
| Max.Speed(km/h) | 45 |
| Minimum turning radius (m) | 5.35 |
| Max.Climbing ability | 20% |
| Max.Lifting weight | 1120kgs |
| Overall dimensions (mm) | 5000x1490x2050 |
| Ground Clearance (mm) | 135 |
| Body and frame | |
| frame | Welded steel framework with sand blasting+paint treatment |
| Body | FRP |
| Hard door | Steel frame+laminated FRP sheet cover |
| Front Windshield | Laminated glass |
| Side window | Safety glass |
| Large Seats: | Sponge +artificial leather, aluminum armrest |
| Floor | Bamboo board+ rubber |
| Electric system | |
| Lighting system and horn | Front:2 Headlights (High beam and dipped headlight), 2front turn signals, 2fog lights;Back:2 rear turn signals, 2taillights(position light &brake light), 1fog light, 1reverse light),with DC-DC converter (converting from 48V to 12V) ,horn. |
| Dashboard meter | Current meter,voltage meter, speedometer |
| Charger | Input 110V-240V~50Hz-60Hz, output 72V/48V, 25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake +hand brake |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Front Suspension system | Independent suspension, cylinder hydraulic vibration absorber |
| Rear Suspension system | Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Wheel &Tyre | 4J*12 steel rim, 155R12,8PR tyre, with wheel cover |
| Color | |
| Body Color | Pure white/Pure Black /Pearl Red/Sapphire Blue/Greece Yellow/Lake Green |
| Seat Color | White and Tan |
| Others | |
| Provides various options like:Seatbelt, solar panel, enclosure, Overshadowing Curtain, aluminum rim, CD player, etc.. |

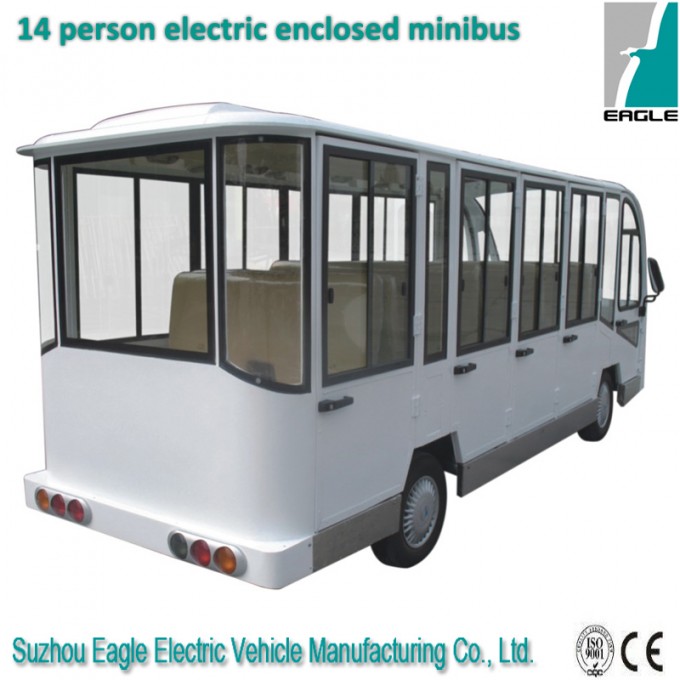

Product Image
