Item | Description |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated power 5KW (6.8HP)DC or 7.5KW (10.2HP) AC motor, Chinese brand |
Battery | Trojan battery, T105+, imported from USA directly |
| Charger | 72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A) 48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Item | Description |

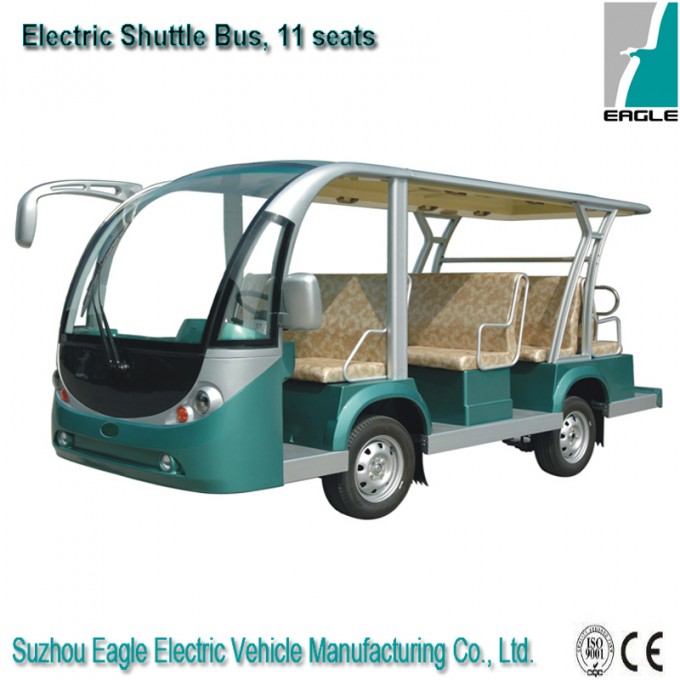

| Passenger Capacity | 11 (all seats facing forward) |
Range (loaded) (km)* | Up to 110 |
| Max.Speed (km/h) | Up to 50 |
| Min.Turning radius (m) | 5.35 |
| Max.Climbing ability(loaded) | Up to 20% |
| Max.Movement after brake at speed of 20km/h | ≤4m |
| Max.Loading weight (kgs) | 880 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
Item | Description |
| Overall dimensions (mm) | 5000x1490x2050 (LxWxH) |
| Min.Ground clearance (mm) | 135 |
| Wheelbase (mm) | 2710 |
| Front wheel tread (mm) | 1222 |
| Rear wheel tread (mm) | 1185 |
Item | Description |
| frame &Chassis | Welded steel framework with sand blasting and painting |
| Body | Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body) |
| Roof | FRP with aluminum frame, two layers, with roof handle |
| Windshield | Laminated glass with wiper |
| Roof supports | Aluminum |
| Seat | Reborn sponge with artificial leather, highback |
| Armrest | Aluminum |
| Floor | Bamboo floor with Skidproof leather |
| Beverage holders | 1 cups holders |
| Side rear view mirror | 2pcs, one long-arm mirror and one small mirror |
Item | Description |
| Lights | 12V, headlight (H/L beam), front turning light, front fog light Rear taillight (brake light and rear turing light) and reverse light |
Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 48V/12V or 72V/12V |
Digital Meter | With Current meter, voltometer, speedometer and various indicators |
| Audio system | Radio with MP3 receiver and 2waterproof speaker |
Item | Description |
| Steering System | Single-stage rack and pinion steering system, With automatic compensation function |
Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Independent suspension |
| Rear suspension | Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft or automatic drive system (stepless speed change) |
| Wheel &Tyre | 4J*12 Steel wheel &155R12 tyre, 8PR |
Item | Option description | Item | Option description |
| 1 | 2-point seatbelt | 9 | Wired microphone |
| 2 | Overshadowing Curtain | 10 | Wiper with water sprayer |
| 3 | Enclosure (PVC) | 11 | Solar panel |
| 4 | Inner rear view mirror | 12 | Right hand drive system (RHD) |
| 5 | Battery watering pipe | 13 | Electrical power steering |
| 6 | Water pump (handle) | 14 | Front disc brake and rear drum brake with vacuum booster |
| 7 | License plate light | 15 | 4J*12 Aluminum rim |
| 8 | CD player |
