Electric Shuttle Bus, Electric Minibus, Ce Approved New Condition

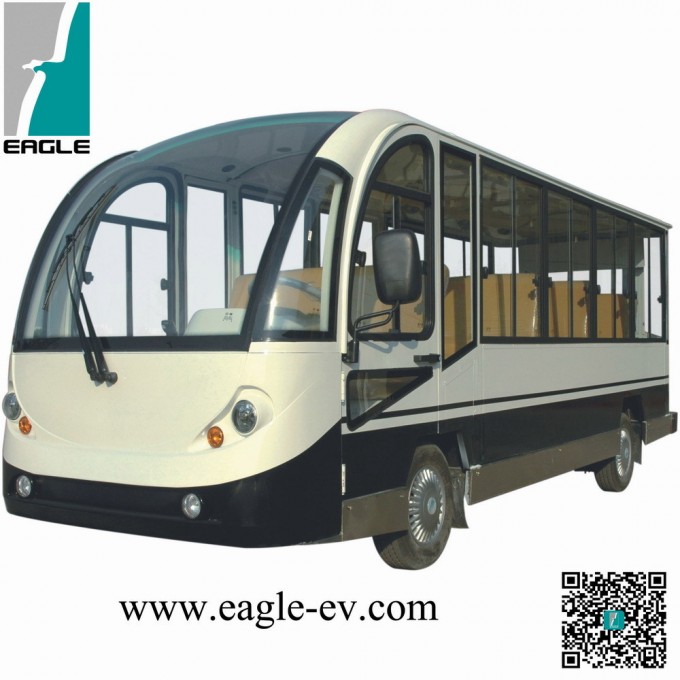

Electric Sightseeing Bus EG6158KFis Eagle's newest electric shuttle bus generation.It's integrated the advantage of Eagle's three old electric shuttle bus generation----nice shape, good performance.Moreover, the biggest advantage of this new shuttle bus is that the "container loading quantity" is increased which can decrease the freight cost dramatically!
Because of its feature of no pollution and low noise, this kind of electric shuttle bus is aperfect transporting vehicle in closed area such as park, resort, garden, museum, village, hotel, airport, community, big factory, pedestrian street, etc...With ten years' experience accumulation, Eagle is providing you the most suitable, reliable, comfortable electric shuttle bus.Choose Eagle's electric vehicle is your best choice!!

Specifications	Model	EG6158KF
Key Components	Power Source	Pure Electric
	Electric System	Both AC and DC system are available
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	14
	Range (loaded) based on flat road at aspeed of 20km/h (km)*	Up to 70
	Max.Speed	Up to 50
	Minimum turning radius (m)	5.35
	Max.Climbing ability (loaded)	Up to 25%
	Max.Movement after brake at speed of 20km/h	≤4m
	Max.Loading weight	1120kgs
Dimensions	Overall dimensions (mm)	5000x1490x2050
	Min.Ground clearance (mm)	135
	Wheelbase (mm)	2710
	Front wheel tread (mm)	1222
	Rear wheel tread (mm)	1185
Body and frame	frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
	Roof	Fibreglass+aluminum frame, with roof handle
Electric system	Lighting system and horn	Headlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1reverse light, with DC-DC converter, horn.
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Four wheel hydraulic drum brake+hand parking brake
	Suspension system	Front suspension:Independent suspension, helix spring +shock absorber;Rear suspension:Rear plate spring +shock absorber
	Driving mode	Clutch, 4F+1R gear box, transmission shaft/Automatic Drive Sytem (Stepless Speed change system)
	Rear axle	Integrated
	Wheel &Tyre	4J*12 Steel wheel, wheel cap, 155R12,8PR
Options	2point seat belt
	New seat
	Formed seat&backrest vinyl
	Inner rear view mirror
	License plate light
	CD player to replace MP3 receiver
	Microphone Wired
	With water sprayer
	Solar panel
	On-board charger
	Right hand drive system
	Electrical power steering
	Front disc brake and rear drum brake, with vacuum booster
	4J*12 Aluminum wheel,
Body Color	Up to 6kinds of standard color for option
Loading	only Assembly is available
