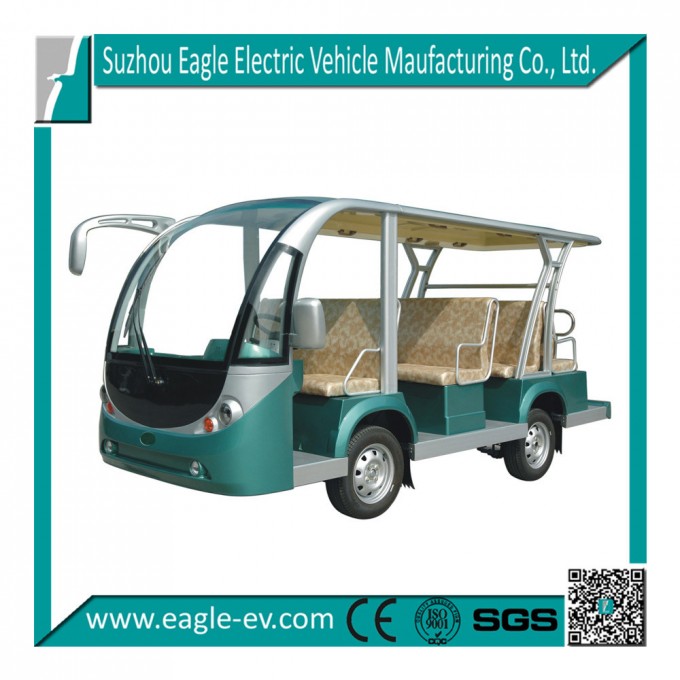

Electric Shuttle Bus, 11 Seat, Eg6118ka, CE Approved

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Is aleading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles.Our company has aworkshop area of 30,000 square meters and 400 workers.Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China.In 2003, we were approved by ISO9001.In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution!EV as azero-emission-car can help improve the environment alot;
Secondly, decrease the cost!Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car.based on calculation, for a48V EV, it only consumes 2KWH electricity per 100kms.Cost is much lower than gasoline car.
Thirdly, energy independent!For acountry that is lack of oil source, it should find away to make it independent from oil.Water resource, sun resource and wind resource are potential alternative resource;The problem is to find amedium to storage the energy.Then battery will be the best choice at this moment.


Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated power 5KW (6.8HP)DC or 7.5KW (10.2HP) AC motor, Chinese brand
Battery	Trojan battery, 12pcs, T105+, imported from USA directly
Charger	72V Smart transformed Charger (input 110V-240V, 50-60HZ, output 72V/25A)

Performance

Item	Description
Passenger Capacity	11 (8 seats facing forward, 3seats facing backward)
Range (loaded) (km)*	Up to 110
Max.Speed (km/h)	Up to 40
Min.Turning radius (m)	4.5
Max.Climbing ability(loaded)	Up to 20%
Max.Movement after brake at speed of 20km/h	≤4m
Max.Loading weight (kgs)	880
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	4230x1490x2050 (LxWxH)
Min.Ground clearance (mm)	140
Wheelbase (mm)	1900
Front wheel tread (mm)	1210
Rear wheel tread (mm)	1200

Body and frame

Item	Description
frame &Chassis	Welded steel framework with sand blasting and painting
Body	Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
Roof	FRP with aluminum frame, two layers, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Aluminum
Seat	Reborn sponge with artificial leather, highback
Armrest	Aluminum
Floor	Bamboo floor with Skidproof leather
Beverage holders	1 cups holders
Side rear view mirror	2pcs, one long-arm mirror and one small mirror

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, front fog light Rear taillight (brake light and rear turing light) and reverse light
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch
DC/DC converter	72V/12V
Digital Meter	With Current meter, voltometer, speedometer and various indicators
Audio system	Radio with MP3 receiver and 2waterproof speaker

Steering &suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, With automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	Integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Automatic drive system (stepless speed change)
Wheel &Tyre	4J*12 Steel wheel &155R12 tyre, 8PR
