Detailed Description

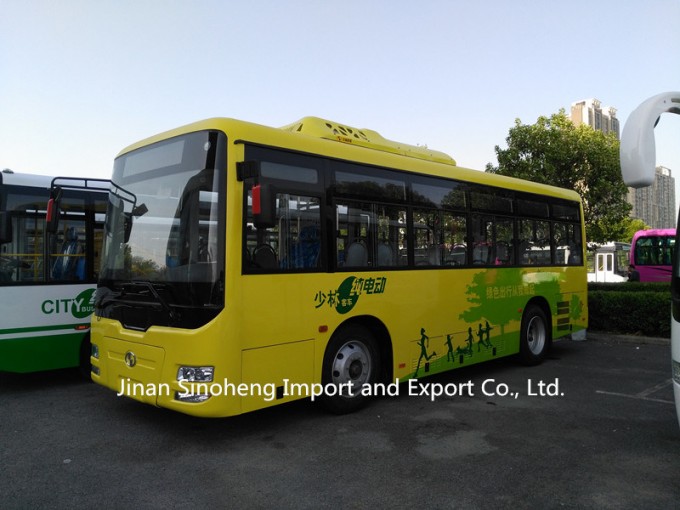

New Shaolin 35-38seats 8.6m Rear engine bus
Smart and magnificent design
This model is equipped flexible co
ntrol system with comfortable large space which provide a incomparable experience during driving. Insist the principle of cost efficient, spare parts commo
nality effectively reduce the use and maintenance cost.
TECHNICAL da
ta:
| ITEM | SLG6860C3GFR RHD/LHD |
| DIMENSION | LENGTH×WIDTH×HEIGHT(MM) | 8550×2400×3145 |
| Tread F (MM) | 1910 |
| Tread R (MM) | 1800 |
| WHEELbase (MM) | 3900 |
| WEIGHT | TOTAL MASS (KG) | 11185 |
| PERFORMANCE | MIN. VEHICLE TURNING CIRCLE (M) | 11 |
| MAX. SPEED (KM/H) | 90 |
| ANGLE (APP/DEP) | 13/10 |
| Max SEATS CAPACITY | 35-38 seats |
| frameWORK | REAR ENGINESTRAIGHT BEAM |
| ENGINE | MODEL | EURO3 YC4G180-30/132KW
EURO3 YC6J200-30/147KW |
| TYPE | 4 CYLINDER IN-LINE |
| RATED-POWER (KW/R/MIN) | 132KW |
| MAX. TORQUE (N.M) | 660 |
| EMISSION STANDARD | EURO3 |
| FUEL TYPE | DIESEL |
| CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
| CLUTCH BOOST | WITH PUMP |
| TRANSMISSION | Gearbox | 5 SPEED- MANUAL |
| ConTROL SYSTEMS | FLEXIBLE SHAFT |
| FRONT AXLE | 3.5T |
| REAR AXLE | 8.0T |
| BRAKING SYSTEM | STEERING | POWER STEERING |
| SERVICE BRAKE | DUAL-CIRCUIT AIR BRAKING SYSTEM |
| PARKING BRAKE | Diaphragm spring brake |
| F/R BRAKING DIA. | Ф310 |
| F/R BRAKING SHOE Width | 120/150 |
| SUSPENSION STYLE | MULTIPLE-LEAF SPRING |
| TYRE | 8.25-20 |
| OIL TANK CAPACITY | 120L |
Packaging&Shipping :
Nude Packing by RO-RO ,Bulk Cargo Ship or f
rame box sea shipping ,can according to client's requirements .
Delivery Time :15-20 days of working ,after the seller receive the buyer's deposits .
Payment Terms:30% TT as deposits before produce and 70% TT before shlpment .or 30%TT beforeproduce and 70% LC at sight .or 100% LC at sight .
For more informations ,please feel free to send inquiry to us ,we will reply you at our first time within 24 hours .
