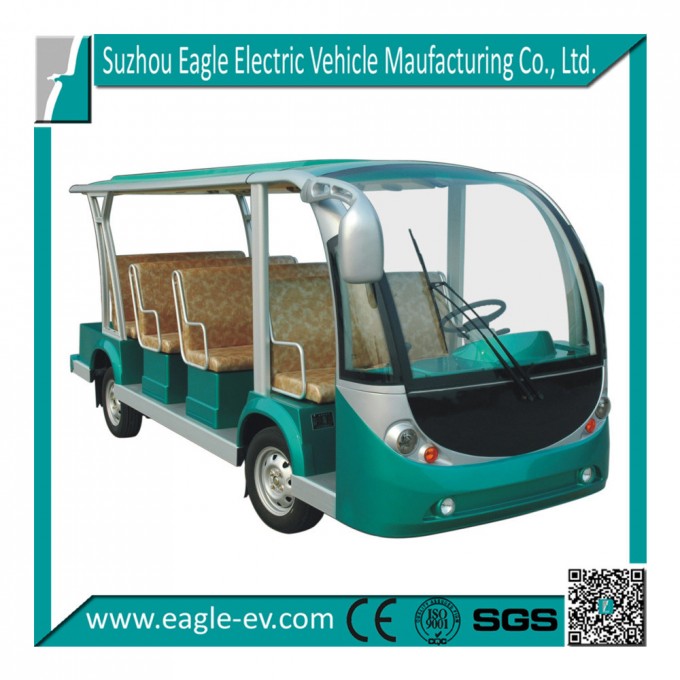

| Model | EG6118KB |
| System | 72V/5KW Series |
| Key Components | |
| Battery | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor |
| Controller | Curtis 1209 (400A@2minutes) |
| Performance | |
| Passenger capacity | 11 |
| Range (loaded) based on flat road at aspeed of 20km/h (km)* | >80 |
| Max.Speed | 50 |
| Minimum turning radius (m) | 5.35 |
| Max.Climbing ability (loaded) | 20% |
| Max.Movement after brake at speed of 20km/h | ≤4m |
| Max.Loading weight | 880kgs |
| Net weight | 1210kgs |
| Dimensions | |
| Overall dimensions (mm) | 5000x1490x2050 |
| Min.Ground clearance (mm) | 135 |
| Wheelbase (mm) | 2710 |
| Front wheel tread (mm) | 1222 |
| Rear wheel tread (mm) | 1185 |
| Detailed Configurations:("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and frame | |
| frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass |
| Roof | Fibreglass+aluminum frame, with roof handle |
| Windshield | Laminated glass |
| 2point seat belt | 8pcs |
| 2point seat belt | 11pcs |
| Overshadowing Curtain | |
| Enclosure | PVC |
| Large Seats: | |
| 1) backrest and cushion | Sponge +artificial leather |
| 2) armrest | Aluminum |
| New seat | Backrest and seat cushion be separated |
| Floor | Bamboo +artificial leather |
| Cup drinker holder | 1pc |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Side rear view mirror | Two pieces per cart |
| Battery watering system,48V system | Without water supply tool |
| Battery watering system,72V system | Without water supply tool |
| Manual Pump | Water supply tool (other water supply tools are available) |
| Emergency power-off button | / |
| Police lights with loud speaker | / |
| Electric system | |
| Lighting system and horn | Front:2 Headlights (High beam and dipped headlight), 2front turn signals, 2fog lights;Back:2 rear turn signals, 2taillights(position light &brake light), 1fog light, 1reverse light),with DC-DC converter (converting from 48V to 12V) ,horn. |
| License plate light | 12V |
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch;Headlight switch, turn signal switch, wiper switch, horn button; |
| Audio System | Radio and MP3 receiver |
| CD player to replace MP3 receiver |
| Microphone | Wired |
| Speaker | 4pcs |
| Reversing alarm | |
| Switch assembly | Lights switch, horn switch, wiper switch |
| Wiper | 12V |
| With water sprayer |
| Solar panel | 2pcs, 48V/185W |
| Solar panel | 1pc, 72V/270W |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Right hand drive system | |
| Electrical power steering | |
| Brake system | Four wheel hydraulic drum brake+hand parking brake |
| Front disc brake and rear drum brake, with vacuum booster |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Front suspension | Independent suspension, helix spring +shock absorber |
| Rear suspension | Rear plate spring +shock absorber |
| Wheel &Tyre | 4J*12 Steel wheel, wheel cap, 155R12,8PR |
| 4J*12 Aluminum wheel, |
