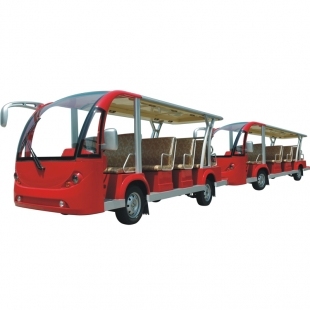

Electric Sightseeing Bus, Electric Shuttle Bus with Trailer

Electric Utility Vehicles

Specifications	Model	EG6158T+EG6158T trailerElectric Utility Vehicles,
Key Components	Power Source	Pure Electric
	Electric System	only DC system is available
	Battery	Trojan battery
	Motor	Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	14+15
	Range (loaded) based on flat road at a speed of 20km/h (km) *	Up to 78
	Max. speed	Up to 40
	Minimum turning radius (m)	9
	Max. climbing ability (loaded)	Up to10%
	Max. movement after brake at speed of 20km/h	≤N/A
	Max. loading weight	2000kgs
Dimensions	Overall dimensions (mm)	2pcs, 5000x1490x2050
	Min. ground clearance (mm)	135
	Wheelbase (mm)	2710
	Front wheel tread (mm)	1222
	Rear wheel tread (mm)	1185
Body and frame	frame	Welded steel framework with sand blasting+paint treatment
	Body	Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
	Roof	Fibreglass+aluminum frame, with roof handle
Electric system	Lighting system and horn	Headlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1 reverse light, with DC-DC converter, horn.
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Four wheel hydraulic drum brake+hand parking brake
	Suspension system	Front suspension:Independent suspension, helix spring + shock absorber;Rear suspension:rear plate spring + shock absorber
	Driving mode	Clutch, 5F+1R gear box, transmission shaft
	Rear axle	Integrated
	Wheel & Tyre	4J*12 Steel wheel, wheel cap, 155R12,8PR
Options	2point seat belt
	Overshadowing Curtain/Enclosure
	New seat
	Formed seat&backrest vinyl
	Inner rear view mirror
	License plate light
	CD player to replace MP3 receiver
	Microphone Wired
	with water sprayer
	Solar panel
	On-board charger
	Right hand drive system
	Electrical power steering
	4J*12 Aluminum wheel,
Body Color	Up to 6 kinds of standard color for option
Loading	Both Assembly and Disassembly are available

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
