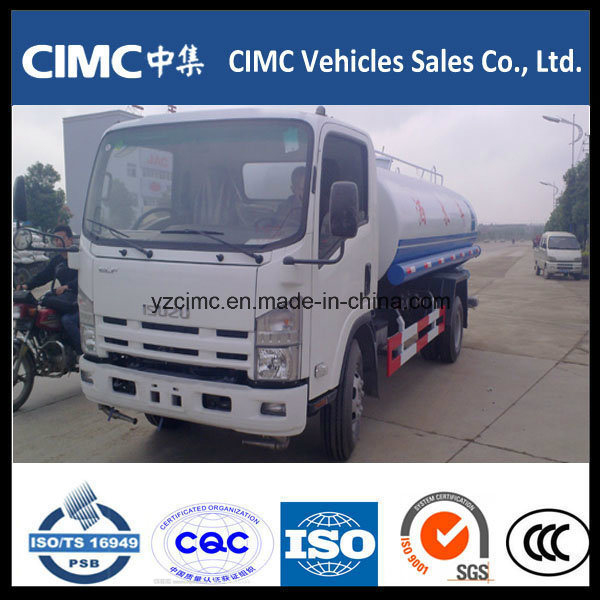

Isuzu Fvr Series Water Tank Truck 10-15m3

Engine Make: ISUZU

Engine model:6UZ1-TCG40 , Euro IV emission standard
Maximum output: 350 hp (257 Kw) at 2000 rpm

Transmission Fuller 9JS150TB, 9 forwards and 1 reverse, 1500N.m, 2600rpm
Ratio: 12.65 8.38 6.22 4.57 3.40 2.46 1.83 1.34 1 13.22 (R)

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:5.571

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber

TANK VOLUME RANE FROM 12-30 M3

Contact
Mr. Allen
Mobile : +86 151 5082 2016

Engine Make: ISUZU

Chassis Model	QL1160ANFRY
Drive	4X2, left hand drive
Engine	Model	6HK1-TCNG40
	Maximum output	241 Hp (177 Kw)
	Emission	Euro IV
	Torque	706 N.m
	Displacement	7.79 L
	Make	ISUZU
Gearbox	Model	ISUZU MLD-6Q
	Gear	6 Forward & 1 Reverse
Front Axle	ISUZU,6000 KG loading capacity
Rear/Driving Axle	Model	ISUZU,10000 KG loading capacity
	Speed ratio	4.8
Tire	10.00-20	6+1 pcs
Cabin	Flat roof cabin,2 seats+1 bed
Water tank	12 M3,Elliptic, stainless steel material, Single compartment
Whole vehicle parameter	Overall dimension	8900x2490X2900 MM
	Wheelbase	5000 MM
	Curb weight	7000 KG
	Max loading weight	16000 KG
	Gross vehicle weight	23000 KG
	Maximum speed	95 KM/h
