Detailed Description

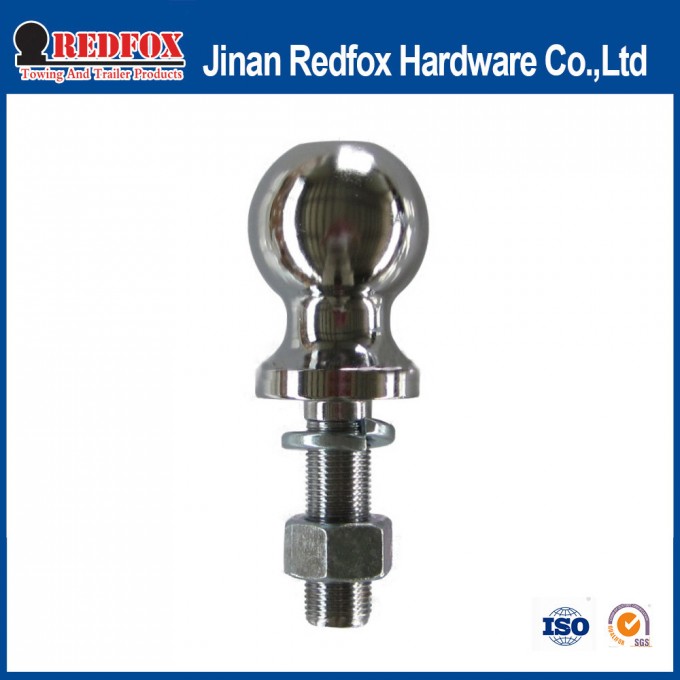

Solid steel hitch balls engineered to meet all safety requirements VESC regulation V-5, US SAE.J684.
Hot forged for superior strength.
When installing hitch balls, torgue all 3/4" shank dia. balls to 160lbs ft.lbs., 1" shank dia. balls to 250lbs., 1-1/4" shank dia. balls to
450ft.lbs
| Item No | Ball Dia | Bolt Shank Dia | Bolt Shank Length | GTW GVWR Rating(lbs.) |
| 10001 | 1-7/8" | 3/4" | 1-1/2" | 2000 |
| 10002 | 1-7/8" | 3/4" | 1-3/4" | 2000 |
| 10003 | 1-7/8" | 3/4" | 2" | 2000 |
| 10004 | 1-7/8" | 3/4" | 2-1/8" | 2000 |
| 10005 | 1-7/8" | 3/4" | 2-1/2" | 2000 |
| 10006 | 1-7/8" | 1" | 2" | 2000 |
| 10007 | 1-7/8" | 1" | 2-1/8" | 2000 |
| 10008 | 1-7/8" | 1" | 2-1/2" | 2000 |
| 10009 | 1-7/8" | 1" | 2-7/8" | 2000 |
| 10010 | 2" | 3/4" | 1-1/2" | 3500 |
| 10011 | 2" | 3/4" | 1-3/4" | 3500 |
| 10012 | 2" | 3/4" | 2" | 3500 |
| 10013 | 2" | 3/4" | 2-1/8" | 3500 |
| 10014 | 2" | 3/4" | 2-1/2" | 3500 |
| 10015 | 2" | 1" | 2" | 6000 |
| 10016 | 2" | 1" | 2-1/8" | 6000 |
| 10017 | 2" | 1" | 2-1/2" | 6000 |
| 10018 | 2" | 1" | 2-7/8" | 6000 |
| 10019 | 2" | 1-1/4" | 2-1/4" | 8000 |
| 10020 | 2" | 1-1/4" | 2-1/2" | 8000 |
| 10021 | 2" | 1-1/4" | 2-5/8" | 8000 |
| 10022 | 2-5/16" | 1" | 2" | 6000 |
| 10023 | 2-5/16" | 1" | 2-1/8" | 6000 |
| 10024 | 2-5/16" | 1" | 2-1/2" | 6000 |
| 10025 | 2-5/16" | 1" | 2-5/8" | 6000 |
| 10026 | 2-5/16" | 1-1/4" | 2" | 10000 |
| 10027 | 2-5/16" | 1-1/4" | 2-1/4" | 10000 |
| 10028 | 2-5/16" | 1-1/4" | 2-1/8" | 10000 |
| 10029 | 2-5/16" | 1-1/4" | 2-1/2" | 10000 |
| 10030 | 2-5/16" | 1-1/4" | 2-1/2" | 12000 |
| 10031 | 2-5/16" | 1-1/4" | 2-1/2" | 14000 |
| 10032 | 2-5/16" | 1-1/4" | 2-5/8" | 12000 |
| 10033 | 2-5/16" | 1-1/4" | 2-5/8" | 14000 |
| 10034 | 2-5/16" | 1-1/4" | 3" | 12000 |
| 10035 | 2-5/16" | 1-1/4" | 3" | 14000 |
| 10036 | 2-5/16" | 1-1/2" | 3" | 25000 |
| 10037 | 1-1/4" | 5/8" | 1-3/8" | Sway Control Ball |
| 10062 | 50mm | 7/8" | 62mm | 3500 kg |
| 10063 | 50mm | 7/8" | 52mm | 3500 kg |
| 10064 | 50mm | 3/4" | 45mm | 2000 kg |
| 10065 | 50mm | 3/4" | 62mm | 2000 kg |
| 10066 | 1-7/8" | 3/4 | 45mm | 2000 kg |
| 10067 | 1-7/8" | 3/4" | 62mm | 3500 kg |
| 10068 | 1-7/8" | 7/8" | 50mm | 3500 kg |
| 10069 | 1-7/8" | 1" | 50mm | 3500 kg |
| 10070 | 1-7/8" | 1" | 62mm | 3500 kg |
| 10071 | 50mm | 1" | 52mm | 3500 kg |
| 10072 | 50mm longer neck | 1" | 62mm | 3500 kg |
