Best Seller 13t American Fuwa Trailer Axle

best seller 13T American Fuwa trailer axle

Company introduction:

Shandong Fuhua Axle Co.,Ltd is one of the major manufacturers specializing in the production of trailer axles.

Our company has high technological background, sophisticated manufacturing technology, advances detection means, perfect quality assurance system. It is aspecialized manufacturer integrating scientific research, design, production and sales.

The production of "FUSAI" trailer axles passed the national authoritative department detection. The fatigue life is up to 1,500,000 times without damage-more than three times above the national standard, which is in the leading domestic level, and reach or exceed the international standards. Our products are popular not only in domestic markets, but all over the world. Since the products are designed and optimized by computer, they have reasonable structure, good braking performance, high strength and rigidity, strong bearing capacity, long service life, good service, trusted by the users.

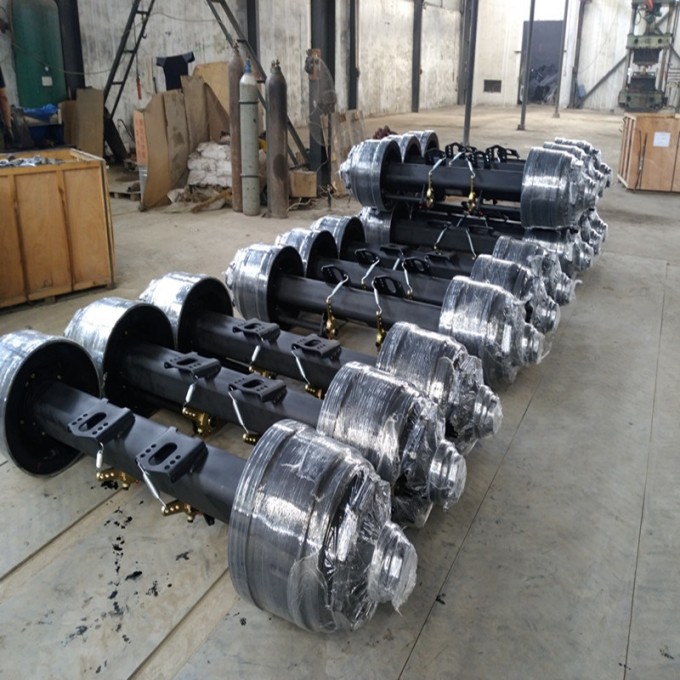

"FUSAI" brand Fuwastyle trailer axle
1.Fuwa spindle design which is the widely used in the industry with proven performance
2.Low-alloy machined spindles, friction welded seamlessly, and overall heat treating process
3.Axle stubs and brake hubs are all mould forging, ensure they are more powerful and better steady
4.Special clone-shape design on the axle-shoulders, lessening stress concentration and enhancing anti-fatigue performance
5.Unique design on axle stubs (with apcise declination angel at both ends) to minimize tire wear
6.National and industry standard compliant set components
7.National Automobile Monitor and Inspection Center certified axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.

Specifications:

Axle Type	Bearings	Max. Capacity (T)	Brake (mm)	Track (mm)	Center Distance Of Brake Chamber (mm)	Axle Tube (mm)	Stud	PCD (mm)	Hole Diameter (mm)	Total Length (mm)	Weight (kg)
FS- 2001	HM212049/10 HM218248/10	11	420*180	1850	410	Φ127*16	10*M22*1.5ISO	285.75	221	2185	363
FS- 2002	HM212049/10 HM218248/10	11	420*180	1850	400	Φ127*16	10*M20*1.5ISO	335	281	2185	350
FS- 2003	HM518445/10 HM518445/10	12	420*180	1820	368	Φ127*16 127*127*16	10*M22*1.5ISO	335	281	2165	361
FS- 2004	HM518445/10 HM518445/10	12	420*180	1820	368	Φ127*16 127*127*16	10*M20*1.5JIS	285.75	221	2165	347
FS- 2401	HM518445/10 HM518445/10	13	420*180	1840	388	150*150*12	10*M22*1.5ISO	335	281	2185	363
FS- 2402	HM518445/10 HM518445/10	13	420*180	1840	388	150*150*12	10*M20*1.5JIS	285.75	221	2185	350
FS- 2403	HM518445/10 HM518445/10	13	420*180	1840	388	150*150*12	8*M20*1.5JIS	285	221	2185	365
FS- 2404	HM518445/10 HM518445/10	16	420*220	1840	354	150*150*16	8*M22*1.5ISO	335	281	2185	421

Attention:

1. Optional track length available.

2. Optional ABS and automatic slack adjuster available.

3. All the components are in common use of Fuwa.

4. Rights of changing product's design and specification are reserved.
